Korenix
Industrial data communication products
JetNet includes various types of unmanaged, managed, PoE and specific switches for the segments such as marine, in-vehicle and power & energy
-
-
-
-
-
L3 Managed Ethernet
L2 Managed Ethernet
-
-
-
-
Industrial connectivity
JetWave – the industrial wireless solutions allow users to easily establish connectivity between isolated networks, giving greater flexibility for building secure applications.

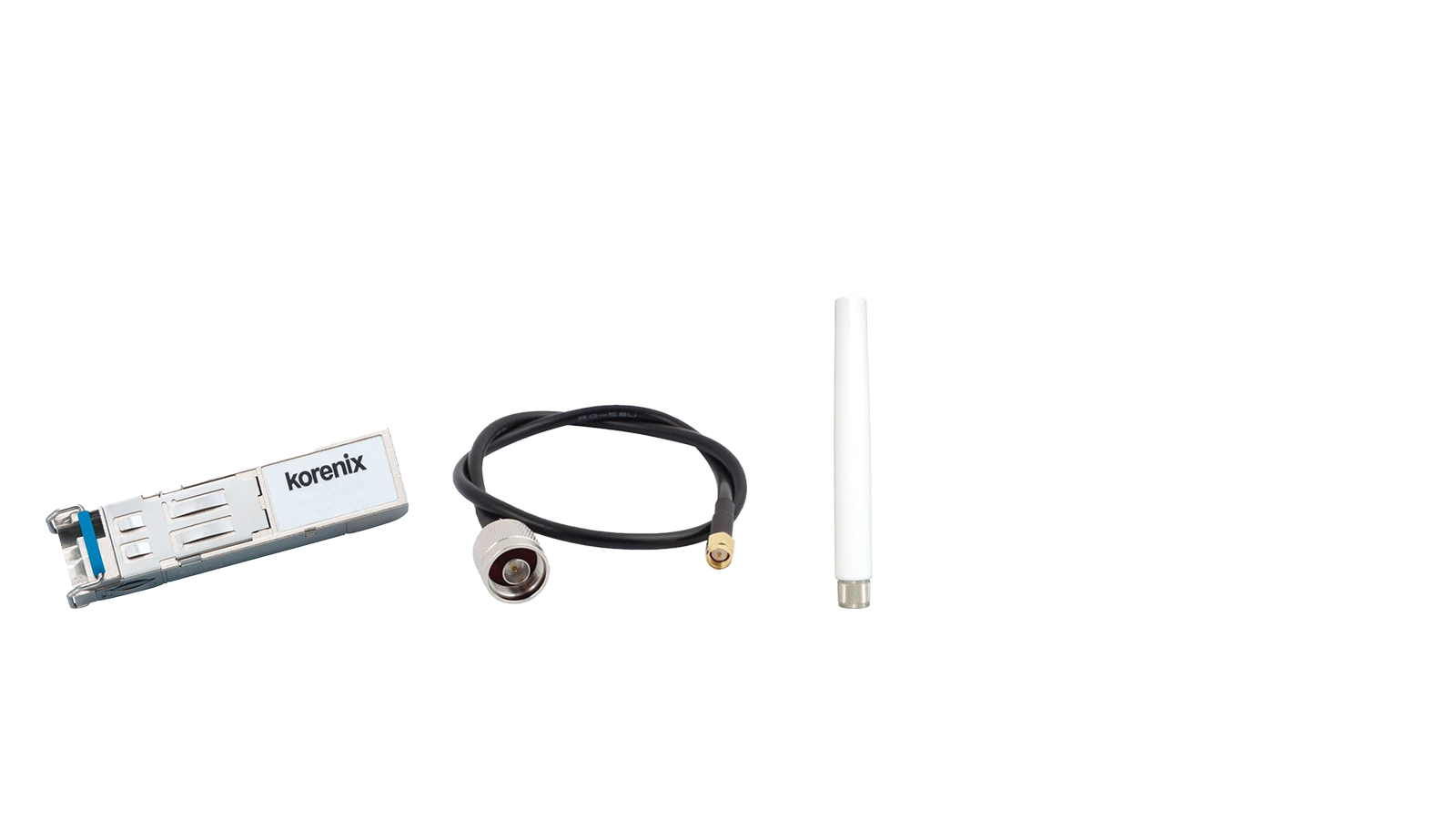

various accessories such as SFP modules, power supplies, antennas, etc.
We offer a wide range of media converters to meet industry needs, including fiber, Ethernet, RS-232, RS-422, RS-485 to fiber media converters with extended fiber transmission.
-
-
-
JetPort 5601
-
JetCon 2502
-
JetCon 1701GP-U
JetCon 1702
Featured Products
JetNet 5010G
Industrial 7+3G Gigabit Managed Ethernet Switch
7 10/100Base-TX and 3 Gigabit RJ-45/SFP combo ports (10 / 100 / 1000 Base-T 100 Base-FX 1000 Base-X)
SFP ports support 100/1000 Fiber with Digital Diagnostic Monitoring (DDM) to monitor long distance fiber quality
32Gbps Non-Blocking switch backplane 8K MAC address table
IEEE 802.1X MSTP RSTP and Multiple Super Ring (Rapid Super Ring Dual Homing MultiRing TrunkRing) for network redundancy
Advanced management by 256 VLAN Private VLAN QinQ GVRP QoS IGMP Snooping V1/V2/V3 Rate Control Port Trunking LACP Online Multi-Port Mirroring
VLAN Private VLAN QinQ GVRP QoS IGMP Snooping V1/V2/V3 Rate Control Port Trunking LACP Online Multi-Port Mirroring
Supports LLDP and Korenix NMS software for auto-topology visualization and efficient group management
F00N5010000010
JetNet 3905f-s
Industrial 5-port Marine Unmanaged Fast Ethernet Fiber Switch (single-mode)
4 10/100 Base TX ports plus 1 Fast Ethernet Fiber ports
Industrial Slim Size Design
Broadcast storm control
Support 802.1p QoS
Supports AC 1.5KV Hi port isolation protection
Wide Power input 10 60 VDC
Industrial 5-port Compact Fast Ethernet Switch
5 10/100TX Ports with Auto MDI/MDI-X
10-60VDC
Compact size
Rugged aluminum case
F00N2205500000
Industrial 28-port Full Gigabit with 4-port SFP Managed Ethernet Switch AC
24 10/100/1000Base-TX 4 100/1000M SFP ports
Fanless
Security : ACL L2/L3 TACACS+ RADIUS 802.1X port isolation
Redundance protocol: MSR RSTPMSTP
USB Firmware upgrade
-40~75°C operating temperature
EN 50121-4
Part numberF00N6228G02001
Add local wireless connectivity to your machine
********* A seamless connection to PLC and HMI data over wireless connectivity is easily established with the help of JetWave products from Korenix.
********* A seamless connection to PLC and HMI data over wireless connectivity is easily established with the help of JetWave products from Korenix.
We provide different types of switches with IEC 61850-3 & IEEE1613 certificate for power substation
********* With design with cyber security, cyber redundance and support multiple type packets such as GOOSE, SMV. Users can integrate the switches with IED and SCADA easily.
********* With design with cyber security, cyber redundance and support multiple type packets such as GOOSE, SMV. Users can integrate the switches with IED and SCADA easily.
Add global wireless connectivity to your machine
********* Machine data can be consolidated worldwide in a secure and easy to manage way without interrupting and interfering with the existing OT network in the factory. Reducing risk and creating opportunities for a service business.
********* Machine data can be consolidated worldwide in a secure and easy to manage way without interrupting and interfering with the existing OT network in the factory. Reducing risk and creating opportunities for a service business.
